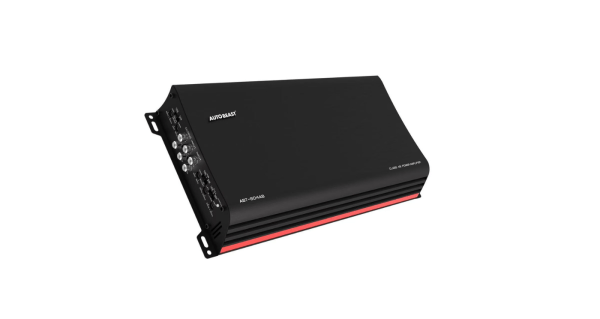

Autobeast 80Wx4 4 Channel Amplifier

Autobeast 80Wx4 4 Channel Amplifier

Product

PRODUCT FEATURES

Autobeast 80Wx4 4 Channel Amplifier.

ABT-804AB  |  4 Channel Amplifier

Features:

The Autobeast ABT-804AB is designed for enthusiasts needing a powerful yet clean 4-channel amplifier for mids, highs, or a combination system.

With 4×80W RMS at 4 ohms and 4×120W at 2 ohms, this amplifier delivers strong, distortion-free audio across all channels.

When more power is required, the amp can be bridged to produce 2×240W, making it suitable for subwoofers or high-power mid-bass drivers.

Built with high-grade Class AB circuitry, it ensures warm, accurate sound reproduction with <0.1% THD.

The wide 10Hz–30kHz frequency response exposes full sound detail, while the adjustable 50Hz–250Hz low-pass filter allows precise tuning and system flexibility.

With robust heat dissipation, reliable performance, and broad input sensitivity, the ABT-804AB is ideal for both entry-level and advanced car audio systems.

Specifications:

• Model: ABT-804AB

• RMS @ 14.4V: 4 × 80W

• Power @ 4Ω: 80W × 4

• Power @ 2Ω: 120W × 4

• Bridged @ 4Ω: 240W × 2

• THD: <0.1%

• Frequency Response: 10Hz – 30kHz

• Signal-to-Noise Ratio: >92dB

• Low-Pass Filter: 50–250Hz

• Input Sensitivity: 200mV–8V

• Recommended Fuse Type: 35A × 2

• Dimensions: 340 × 178 × 54mm
