Sony XM-N1004 75.4 10000W 2/4 Channel Amplifier
R1,950.00
The Sony XM-N1004 | 10 000 Watts 2/4 Channel Amplifier
FEATURES:
- 1000W high power output
- 70W x 4 (4 ohms), 85W x 4 (2 ohms), 175W x 2 (BTL)
- Automatic Thermal Control
- Low pass filter and high pass filter
- Single sided connections
SHORT SPECS:
- Channel Configuration: 4ch; 3ch; 2ch
- MAX. Channel Power Configuration at 4 OHM: 4 x 170W
- MAX. Channel Configuration at 4 OHM BTL (Bridge-Tied Load): 2 x 500W
- MAX. Channel Power Configuration at 2 OHMS: 4 x 250W
- Frequency Response: 5 – 50 kHz
- Weight: 2.7 kg
Out of stock
Sony XM-N1004 75.4 10000W 2/4 Channel Amplifier.

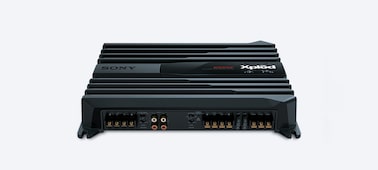

The front of the XM-N1004 Amplifier Box
PRODUCT FEATURES:
Sony XM-N1004 75.4 10000W 2/4 Channel Amplifier
HORSEPOWER FOR YOUR SOUND SYSTEM
Driving is always more fun when you’ve got your favourite music pumping. A 1000W high power amplifier delivers cleaner sound to the speakers for enhanced listening.
Power up your ride
Crank out the tunes while you drive with 1000 Watts from the high power amplifier.
STAYS CHILLED WITHOUT SHUTTING DOWN
Some amps just shut down when they overheat, but Automatic Thermal Control lowers the amp’s output so that you can keep listening while air circulates inside it.
Separate the highs and lows
High and Low Pass Filters send frequencies to the right speakers.
Solidly built
All parts have been selected for sound quality and reliability.
Flexible installation
Single sided connections give you multiple mounting options.
SONY XM-N1004 75.4 10000W 2/4 CHANNEL AMPLIFIER
FEATURES:
Automatic Thermal Control
High temperatures can have a negative effect on amplifier components, often causing the amp to shut down until it returns to a cooler temperature.
Automatic Thermal Control lowers the amp’s output, so you won’t ever need to worry about the amp suddenly cutting out.
Stay cool
The amp’s design maximises air circulation within the unit, allowing it to remain cool while reproducing stable, powerful sound that’s free from distortion.
Low Pass Filter (LPF)
Music sounds better when the correct frequencies are channelled to the right parts of your speakers.
The built-in LPF ensures that only deep bass sounds are directed to your subwoofer.
High-quality components
You deserve to hear your favourite tracks reproduced in outstanding sound quality.
The Stereo Power Amplifier utilises high-quality audio capacitors, output transistors, and choke coils to ensure true, reliable sound reproduction.
High Pass Filter (HPF)
Like the Low Pass Filter, the HPF ensures that everything but the deepest bass notes are directed to your full-range speakers.
a a a a a a a a a a a a a a a a a a a a
a a a a a a a a a a a a a a a a a a a a
an a a a a a a a a a a a a a a a a a a a
an a a a a a a a a a a a a a a a a a a a
*Be sure to follow us on Facebook or Instagram so you don’t miss out on our latest products, new stock and much more: My Audio and Security Facebook / My Audio and Security Instagram .*
| Brand | Sony |
|---|---|
| Color | Black |
| GTIN | 4905524931631 |
SIZE & WEIGHT
- Weight: 2.7 kg
AMPLIFIER
- CHANNEL CONFIGURATION: 4ch; 3ch; 2ch
- HIGH PASS FILTER: 80 Hz
- HIGH PAS FILTER SLOPE: 12 dB/oct
- LOW PASS FILTER: 80 Hz
- LOW PASS FILTER SLOPE: 18 dB/oct
RATED OUTPUT POWER, RMS 20 - 20000 Hz
- MAX. CHANNEL CONFIGURATION AT 4 OHM (W) / THD (%): 70W x 4 / 1.0%
- MAX. CHANNEL CONFIGURATION AT 2 OHM (W) / THD (%): 85W x 4 / 1.0%
MAXIMUM OUTPUT POWER (1kHz)
- MAX. CHANNEL POWER CONFIGURATION AT 4 OHM: 4 x 170W
- MAX. CHANNEL CONFIGURATION AT 4 OHM BTL (BRIDGE-TIED LOAD): 2 x 500W
- MAX. CHANNEL POWER CONFIGURATION AT 2 OHMS: 4 x 250W
GENERAL FEATURES
- FREQUENCY RESPONSE: 5 - 50 kHz
- TOLERANCE: +0/-3dB
- SIGNAL TO NOISE RATIO: 100dB
- TOTAL HARMONIC DISTORTION AT 1 KHZ (%): 0.05
DETAILS
- CEA POWER OUTPUT: 70W x 4
- CEA SN RATIO: 93dBA
- MOSFET: YES
- SUBSONIC HIGH PASS FILTER : 12dB/oct
- LINE IN: INPUT SENSITIVITY: 0.3-6
- GOLD PLATED CONNECTORS: YES
- CURRENT DRAIN (A) - RATED OUTPUT POWER AT 4 OHM: 36
WHAT'S IN THE BOX
- XM-N1004 Owner's Manual (3-66)
- 4-channel amplifier
- Two 25-amp ATO fuses (installed)
- Four 3/4" Self-tapping screws
- Power terminal protective cover
- Operating instructions (English/ Spanish)
- Warranty information
